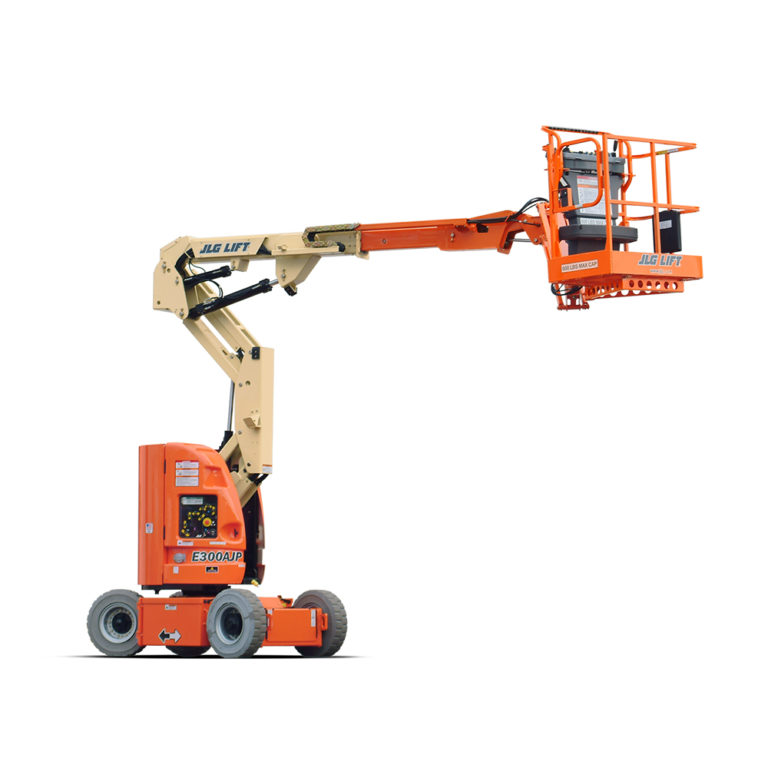

30ft JLG E300AJP ELECTRIC KNUCKLE BOOM

Available Now

Platform Height

9.14

Working Height

10.97

Lift Capacity

230

Fuel Type

Electric

Technical Specification
Performance
Platform Height	29-ft 5-in / 8.96-m
Horizontal Outreach	20-ft 1-in / 6.12-m
Up and Over Clearance	13-ft 2-in / 4.01-m
Swing	350 Degrees Non-Continuous
Platform Capacity	500-lb / 227-kg
Platform Rotator	180 Degrees Hydraulic
Weight	15,400-lb / 6,985-kg
Ground Bearing Pressure	170 psi / 11.95 kg/cm²
Max Drive Speed	4.5 mph / 7.2 km/h
Gradeability	25%
Turning Radius Inside (2WS/4WS)	5-ft / 1.52-m
Turning Radius Outside (2WS/4WS)	10-ft 2-in / 3.1-m
Power Source
Electrical System	48V DC
Batteries	8 x 6V, 305 amp-hr
Drive Motors	Dual Electric Traction
Tires
Standard	25 x 7 x 12-in Non-marking
Hydraulic System
Capacity	2.1 gal / 7.95 L
Motor/Pump	Permanent Magnet Motor/Gear Pump
