Specifications
| Specification | Value |
|---|---|
| Rated Lift Capacity | 2,500 kg @ 500mm load centre |
| Lift Height (standard triplex) | 4,700 mm |
| Available Mast Heights | 2,700 – 6,000 mm (duplex and triplex) |
| Overhead Guard Height | 2,135 mm |
| Engine | GCT GK25 LPG, 2,488cc, 43.4 kW |
| Travel Speed (laden / unladen) | 18 km/h / 19 km/h |
| Lifting Speed (laden) | 0.56–0.60 m/s |
| Minimum Turning Radius | 2,180 mm |
| Gradeability (laden) | 23–27% |
| Service Weight | approx. 2,650 kg |
| Front Tyres | 7.00-12-12PR pneumatic |
| Rear Tyres | 6.00-9-10PR pneumatic |
| Wheelbase | 1,650 mm |
| Overall Width | 1,155 mm |
Available Options
- Duplex and triplex mast configurations to suit different stack heights
- Solid, pneumatic, and non-marking tyre options
- Dual-fuel (LPG/gasoline) variant for flexibility
- Sideshift carriage (standard or optional depending on variant)
- Cabin enclosure for cold-store applications
- Various fork lengths available
Safety Features
The XF25 LPG is built around a low centre-of-gravity chassis design with a backward-tilting counterweight and an optimised triplex mast profile that keeps forward sightlines clear even when loads are elevated. The OPS (Operator Presence Sensing) system is standard — if the operator leaves the seat without applying the parking brake, drive and hydraulics are interrupted automatically.
The wet brake drive axle uses enclosed braking surfaces with custom high-strength bolts and wheel-side planetary reducers. Enclosed braking means consistent performance in dusty and wet conditions, far less maintenance than drum systems, and a service life well beyond 10 years under normal use.
All key electrical connectors are fully waterproofed, and the cast open steering axle increases the maximum internal turning angle to 82° — giving the machine better manoeuvrability in narrow aisles than older steering axle designs.
Hydraulics & Control System
The XF25 uses a high-pressure hydraulic system with load-sensing, steering-priority multiway valves to improve system efficiency across all operating conditions. The Shimadzu gear pump delivers low noise and reliable output throughout the hire period. All joints use 24° conic seals, and every high-pressure pipe joint includes a pressure measuring port for easier diagnostics and maintenance.

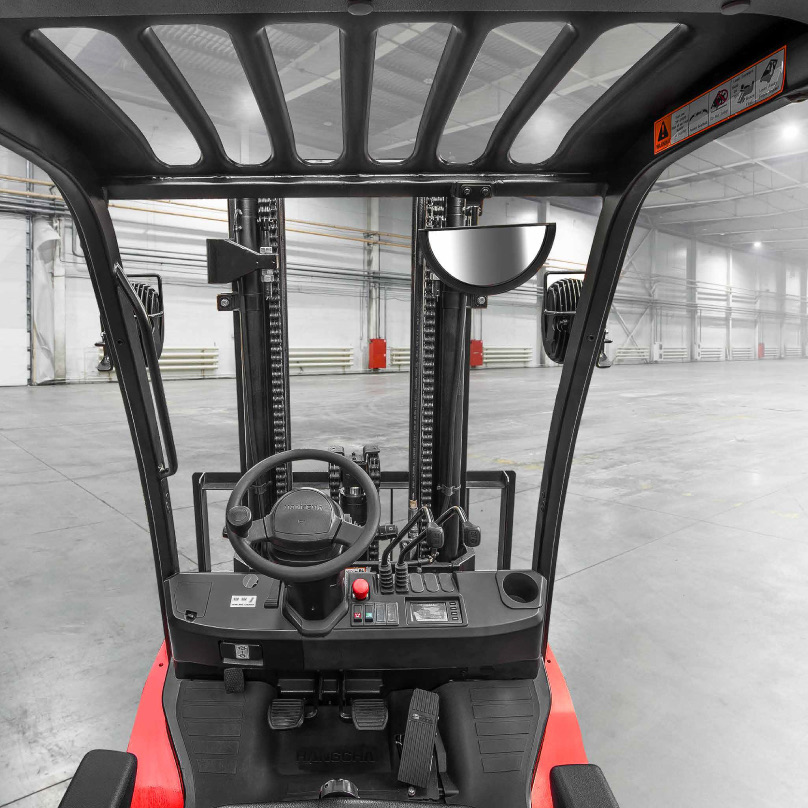

The fingertip control operating system is optional on this series and is available on request. Standard configuration uses conventional lever controls with a full-colour interactive instrument panel that displays real-time operating data, fault codes, and machine status.
Operator Comfort
Three-stage vibration reduction is built into the cab structure: the gearbox, overhead guard, and seat are all independently fully suspended. Sound-absorbing material is fitted to key structural surfaces to reduce cab noise on long shifts. The overhead guard is an integrated fully suspended unit — a full enclosed cabin is available as an option for cold-store or outdoor operation in harsh weather.
The ergonomic cab layout provides ample legroom with an enlarged cab space and adjustable steering column. The optional new-generation fingertip operating system relocates all hydraulic controls to the armrest for a more natural operating position.
