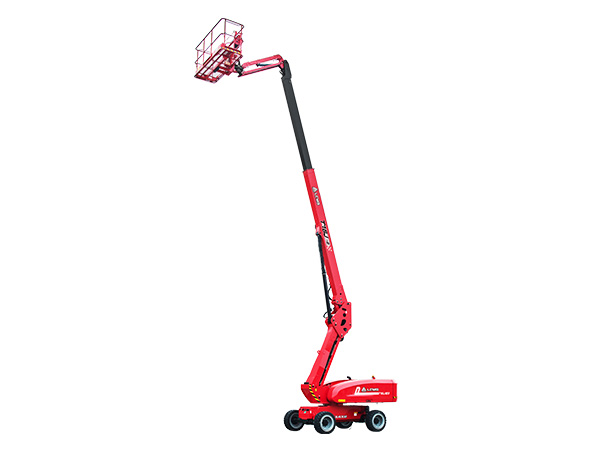

51ft LGMG T16J-2 Telescopic Boom Lift

Available Now

Platform Height

16.3

Working Height

18.3

Lift Capacity

300

Fuel Type

Diesel

Models	T16J-2	T52J-2
Measurements
Work Height Max	18.3m	60'
Platform Height Max	16.3m	53'6"
Horizontal Outreach Max	11.3m	37'1"
Platform Length	2.44m	8'
Platform Width	0.9m	2'11"
Length-Stowed	9.18m	30'1"
Length-Transport (jib tucked)	6.87m	22'6"
Overall Width	2.42m	7'11"
Height-Stowed	2.65m	8'8"
Height-Transport	3.02m	9'11"
Wheelbase	2.4m	7'10"
Ground Clearance	0.37m	1'3"
PRODUCTIVITY
Platform Capacity (unrestricted)	300kg	661 lbs
Platform Capacity (restricted)	450kg	992 lbs
Max. Platform Occupants	2 (unrestricted) / 3 (restricted)
Turntable Rotation	360° Continuous
Drive Speed-Stowed	4km/h	2.5mph
Drive Speed-Raised	0.8km/h	0.5mph
Gradeability	45%
Max. Wind Speed	12.5m/s	28mph
Turning Radius-Inside	3m	9'10"
Turning Radius-Outside	5.8m	19'
Max. Slope	5°/5°
Tire Type	Solid
Tire Models	33*12-20
Ground Pressure, Tyres	431.7 kPa	62.6 psi
POWER
Power Source	Kubota 18.2kW/24.4hp
Fuel Tank Capacity	65L	17.2 gal
HYDRAULIC SYSTEM
Hydraulic Oil Volume	100L	26.4 gal
WEIGHT
Machine Weight	7300kg	16094 lbs
