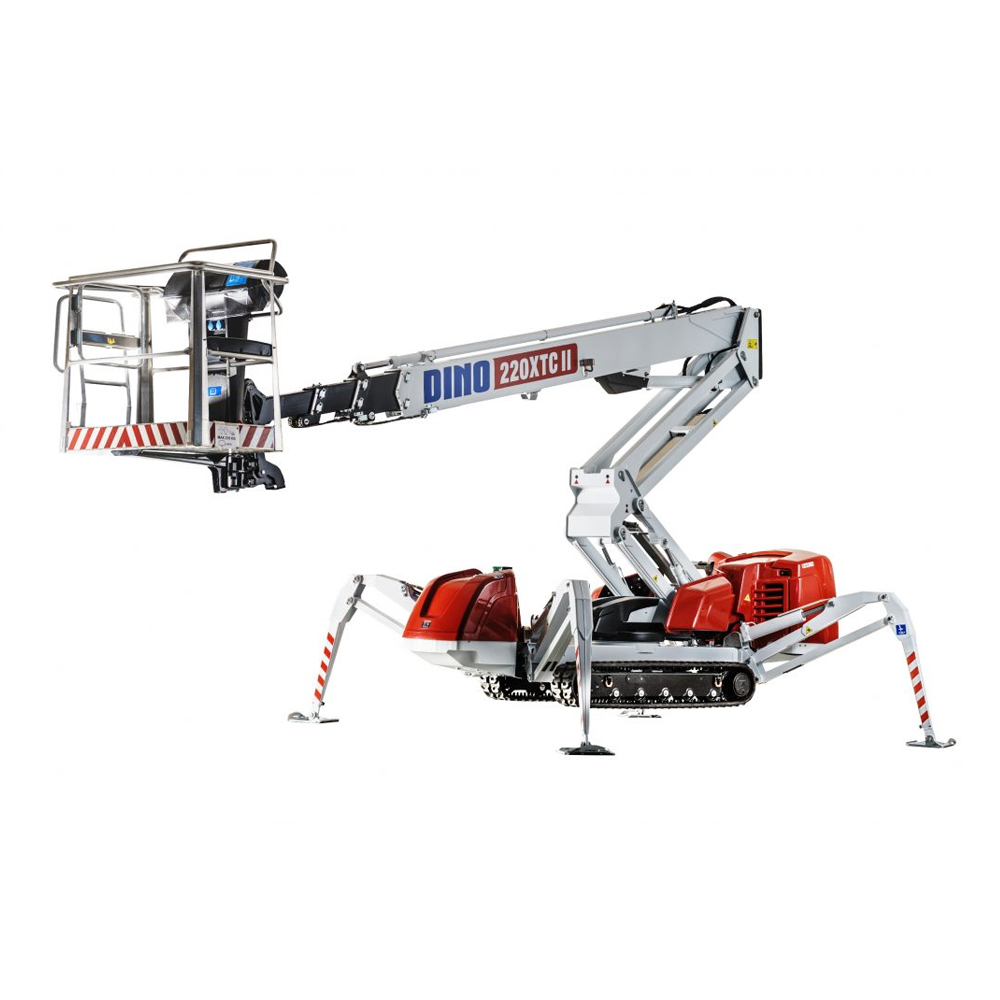

65ft DINO 220XTC II TRACKED BOOM LIFT

The DINO 220XTC II is a 22.1 m (72 ft) working height tracked boom lift with a 20.1 m (65 ft) platform height, 11 m horizontal reach, and a 215 kg platform capacity. Powered by an electric drive system, it produces zero emissions at the point of use — making it well suited to indoor environments, enclosed sites, and noise-sensitive locations. Rubber tracks provide excellent ground protection and allow the machine to operate on sensitive surfaces such as polished concrete, pavers, and landscaped areas.

What sets the 220XTC II apart from wheeled electric booms in its class is the tracked undercarriage combined with a compact footprint. The machine can manoeuvre through standard doorways and into tight internal spaces while still delivering genuine 22 m reach. The articulating and telescoping boom combination provides the horizontal reach needed to work over obstacles — useful when access above machinery, racking, or structural elements is required. Despite being battery-powered, the 220XTC II is rated for outdoor use on firm, reasonably level ground.

In the Geelong region this machine is regularly hired for high-level interior work in industrial sheds, warehouses, and large commercial buildings — including steel structure painting, roof inspections, lighting maintenance, and installation work where ground surface protection and zero emissions are priorities.

Key Features

• Working Height: 22.1 m / 72 ft
• Platform Height: 20.1 m / 65 ft
• Horizontal Reach: 11 m
• Platform Capacity: 215 kg
• Drive: Electric (zero emissions) with rubber tracks for surface protection
