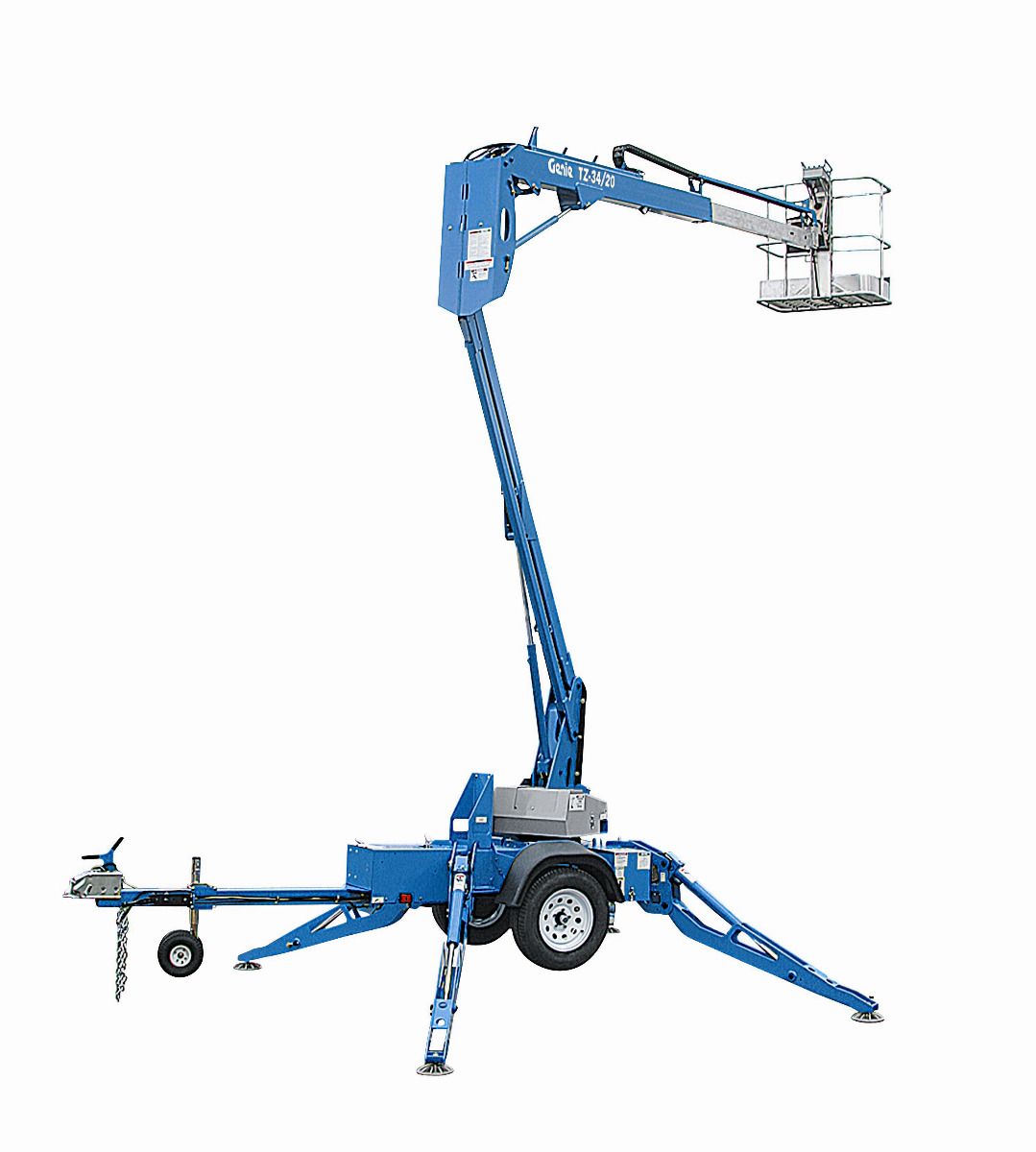

34ft Genie TZ34/20 Trailer Boom

The Genie TZ34/20 is a trailer-mounted articulating electric boom lift delivering a 12.19 m (40 ft) working height and 10.36 m (34 ft) platform height. With a 227 kg platform capacity and 5.59 m of horizontal reach, it suits maintenance, lighting, signage, and access work at height where a self-propelled machine would be impractical or where site access is restricted to tow-vehicle only. The electric drive system keeps it compliant for indoor and enclosed environments without exhaust fumes.

What sets the TZ34/20 apart from conventional trailer booms is its articulating jib arm, which provides the over-and-under reach needed to access work areas behind obstacles — useful on commercial construction sites, in warehouses with racking, or around roofline overhangs. The 4.9 m up-and-over clearance adds versatility that a straight-boom trailer unit cannot match. Being trailer-mounted, it can be towed behind a standard vehicle to remote or multi-site jobs without requiring a truck or low-loader, reducing mobilisation cost on smaller projects.

In the Geelong region this machine is frequently hired for building maintenance, tree work alongside structures, shopping centre fitouts, and event rigging where overhead access is needed in parking areas or courtyards that a larger self-propelled boom cannot reach.

Key Features

• Working Height: 12.19 m / 40 ft
• Platform Height: 10.36 m / 34 ft
• Horizontal Reach: 5.59 m
• Platform Capacity: 227 kg
• Power Source: Electric — zero emissions, suitable for indoor use
