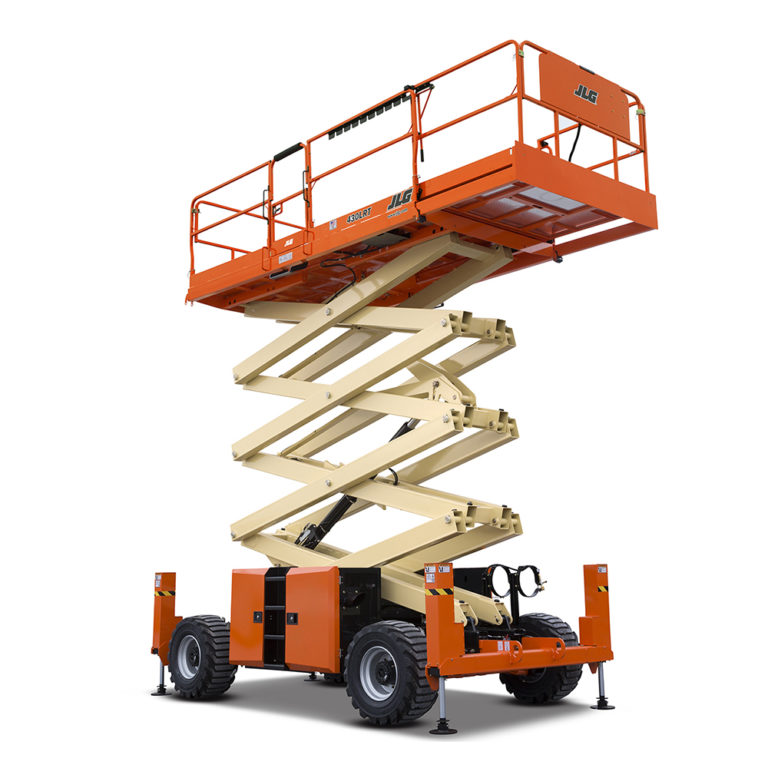

43ft JLG 4394RT DIESEL SCISSOR LIFT

The JLG 4394RT is a heavy-duty rough-terrain diesel scissor lift delivering a 15.11 m (49 ft) working height and 13.11 m (43 ft) platform height. Powered by a Kubota D1305-E4B diesel engine producing 18.5 kW (25 hp), it carries up to 568 kg on the main platform with 230 kg available on the roll-out deck extension. Its four-wheel-drive hydraulic drive system and foam-filled 12 x 16.5 tyres make it a capable choice for outdoor construction yards, civil works, and uneven industrial sites.

What distinguishes the 4394RT from lighter RT models is its combination of substantial platform capacity and genuine 4WD traction — it handles 45% gradeability stowed, making it well suited to sloped sites and rough compacted surfaces common on commercial construction projects. The machine drives at full height, so operators can reposition without lowering the platform, saving time during large-scale exterior tasks such as cladding installation, structural steel work, and maintenance of industrial buildings. The wide deck extension (extending to 6.57 m dual-deck) provides additional working reach without repositioning the machine.

In the Geelong region, the 4394RT is regularly deployed on major construction sites, precast concrete facilities, and infrastructure projects around the industrial corridors of North Geelong and Lara where ground conditions rule out slab-dependent electric models.

Key Features:

• Working Height: 15.11 m / 49 ft
• Platform Height: 13.11 m / 43 ft
• Platform Capacity: 568 kg (main deck), 230 kg (deck extension)
• 4WD Drive System: 2-speed piston hydraulic motors, 45% gradeability
• Fuel: Diesel — Kubota D1305-E4B, 18.5 kW / 25 hp, 83 L tank
