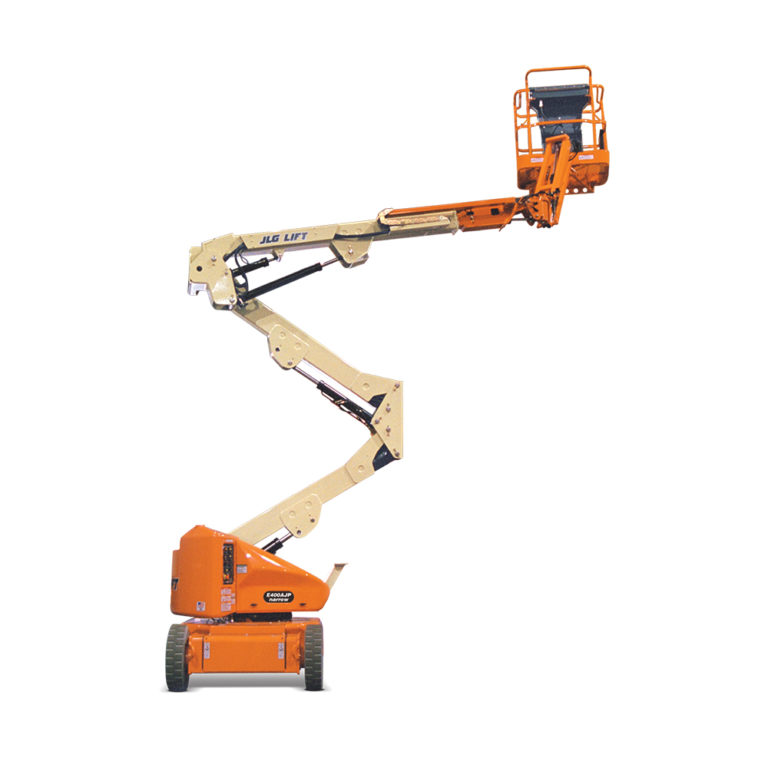

40ft JLG E400AJPN ELECTRIC KNUCKLE BOOM

The JLG E400AJPN is a 40 ft electric knuckle boom lift delivering a working height of 14.19 m (46 ft) and a platform height of 12.19 m (39 ft), with 6.83 m of horizontal reach and a 230 kg platform capacity. Powered by a 48V DC battery system, it produces zero emissions and operates quietly — making it the right choice for enclosed spaces such as warehouses, manufacturing facilities, shopping centres, and indoor construction sites where diesel or gas machines are not permitted.

What sets the E400AJPN apart from standard electric booms is its narrow 1.50 m stowed width, which allows the machine to pass through standard single doorways and navigate congested industrial aisles without requiring structural modifications or special permits. The articulating knuckle arm provides 6.55 m of up-and-over clearance, letting operators work above racking, mezzanines, or structural obstacles that would block a straight-boom or scissor lift. The 30% gradeability rating means it handles ramps and uneven internal floor surfaces reliably on a single 2WD configuration.

In the Geelong region, this machine is regularly used for mechanical and electrical services in manufacturing plants and food production facilities, ceiling and HVAC installations in large commercial buildings, and maintenance work in multi-level retail or storage environments where indoor-only access equipment is a site requirement.

Key Features:

• Working Height: 14.19 m / 46 ft
• Horizontal Reach: 6.83 m with 6.55 m up-and-over clearance
• Platform Capacity: 230 kg
• Power Source: Electric — 48V DC, zero emissions, indoor-safe
• Stowed Width: 1.50 m — fits through standard single doorways
