60ft JLG M600JP ELECTRIC STRAIGHT BOOM

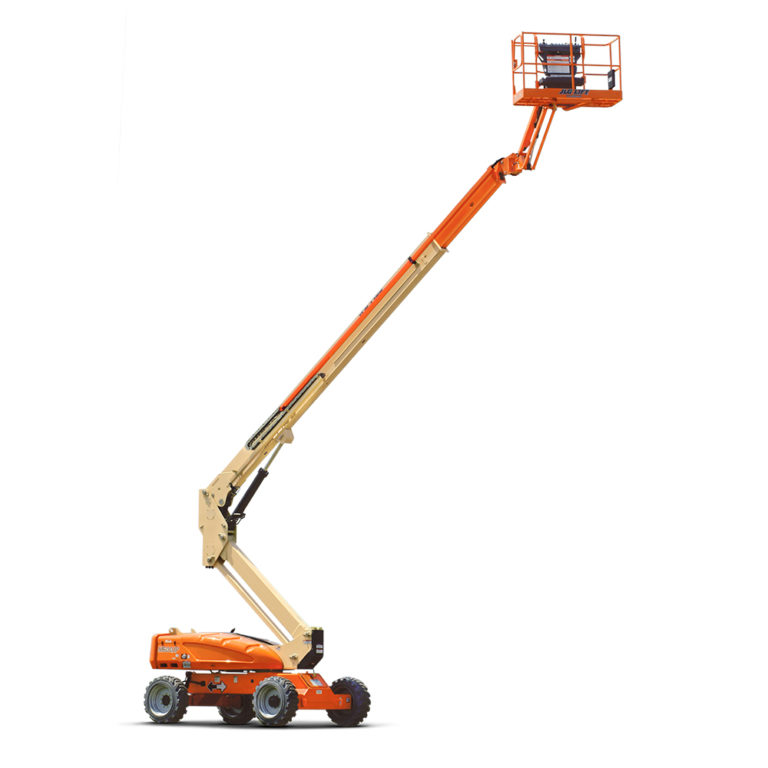

The JLG M600JP is a 60 ft (18.29 m platform height) battery-electric articulating boom lift with a 1.24 m hydraulic jib, delivering a working height of approximately 20.39 m. With a 230 kg unrestricted platform capacity and a maximum horizontal outreach of 14.19 m, it is suited to large-scale construction, commercial fitout, and industrial maintenance work where emissions-free operation is required. The electric drive system makes it a practical choice for indoor environments, enclosed structures, and noise-sensitive sites.

What distinguishes the M600JP from comparable electric booms is its combination of 400° non-continuous turret swing, a 180° hydraulic platform rotator, and a fully articulating jib with 145° of vertical movement. This articulation range allows operators to work over obstacles and position themselves precisely under structural elements — a genuine advantage on Geelong-area commercial construction and industrial sites where obstructions at height are common. The 30% gradeability and 2.42 m machine width give it solid site manoeuvrability without requiring a large footprint.

In the Geelong and Surf Coast region, the M600JP sees regular use on multi-storey commercial builds, warehouse racking installation, roof steelwork, and large-format façade maintenance where a clean-power boom with extended horizontal reach is preferred over a diesel equivalent.

Key Features:

• Working Height: 20.39 m / 66 ft 11 in
• Horizontal Outreach: 14.19 m
• Platform Capacity: 230 kg unrestricted
• Jib Articulation: 145° vertical range (+89° / -56°) with 180° hydraulic platform rotator
• Power: Battery electric — zero emissions, suitable for indoor and enclosed-site use
