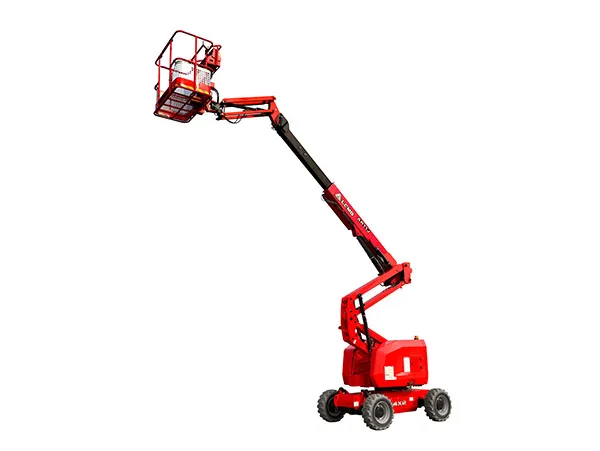

35ft LGMG AR11J(AR35J) Articulated-Boom Lift

The LGMG AR11J is a diesel-powered articulated boom lift delivering a working height of 12.75 m (41 ft 10 in), a platform height of 10.75 m (35 ft 3 in), and a horizontal reach of 6.78 m (22 ft 3 in). Powered by a Kubota D1105 diesel engine, it carries a 270 kg platform capacity for two occupants and suits outdoor construction, industrial maintenance, and infrastructure work where obstructions or setbacks make a straight telescopic boom impractical.

What sets the AR11J apart at this height class is the combination of a 5.32 m up-and-over clearance, a 355-degree turntable rotation, and an overall machine width of just 1.85 m. Four-wheel drive with a full-time floating axle handles 45% gradeability and uneven ground that would stop narrower or two-wheel-drive machines. The articulating jib allows operators to reach over structural members, parapets, and obstacles to position the platform precisely — a genuine advantage on congested construction sites where simply raising to height is not enough. Foam-filled 10-16.5 tyres and a compact stowed length of 5.77 m (or 4.46 m with jib tucked) make the machine easy to transport and position on site.

In the Geelong region, this machine is regularly hired for commercial building construction, industrial facility maintenance, and large infrastructure projects around Corio, North Geelong, and the Geelong waterfront precinct where rough or sloped ground requires a robust diesel machine with genuine off-road capability.

Key Features

• Working Height: 12.75 m / 41 ft 10 in
• Horizontal Reach: 6.78 m / 22 ft 3 in with articulating jib
• Platform Capacity: 270 kg (2 persons)
• Drive System: Four-wheel drive with full-time floating axle, 45% gradeability
• Power Source: Kubota D1105 diesel, 18.2 kW / 24.4 hp
