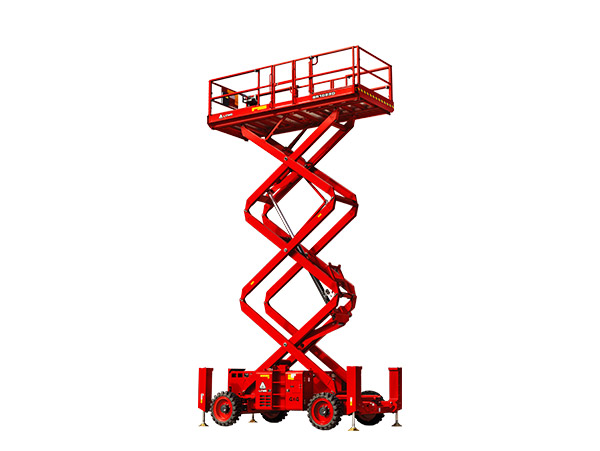

32ft LGMG SR1023D(SR3390D)

32ft LGMG SR1023D(SR3390D)

Available Now
Platform Height
10
m
/
32
ft
Working Height
12
m
/
39
ft
Lift Capacity
1100
kg
Fuel Type
Diesel
Download Spec Sheet
Models SR1023D SR3390D
Measurements
Work Height Max. 12m 39'4''
A-Platform Height-Raised 10m 32'10''
B-Platform Height-Stowed 1.58m 5'2''
C-Platform Length 3.98/4.81m 13'1''/15'9''
D-Platform Width 1.83m 6'
E-Overall Length 4.9m 16'1''
F-Overall Width 2.3m 7'7''
G-Overall Height-Guardrails Up 2.74m 9'
Overall Height-Guardrails Down 2.06m 6'9''
Extension Deck 1.45/1.14m 4'9''/3'9''
H-Wheelbase 2.85m 9'4''
Ground Clearance-Center 0.23m 9''
Productivity
Max. Platform Occupants (In/out) 7 (in) / 7 (out)
Platform Capacity 1100kg 2430 lbs
Platform Capacity-Extension Deck 230kg 510 lbs
Drive Height Full Height
Gradeability-Stowed 40%
Turning Radius-Outside 5.33m 17'6''
Raise/Lower Speed 45/45s
Brakes Four-wheel Brake
Drive Mode 4×4
Tires Type Solid
Tires Size 835×290mm 33''×11''
Ground Pressure, Tyres 887.37 kPa 128.7 psi
Power
Power Source Deutz D2.9 L4 36.4kw/48.8hp
Fuel Tank Capacity 110L 30gal
Hydraulic System
Hydraulic Oil Capacity 140L 37gal
Weight
Machine Weight (7.4m platform, CE) 6980kg 15400 lbs
Machine Weight (6.58m platform, ANSI) 6880kg 15170 lbs
