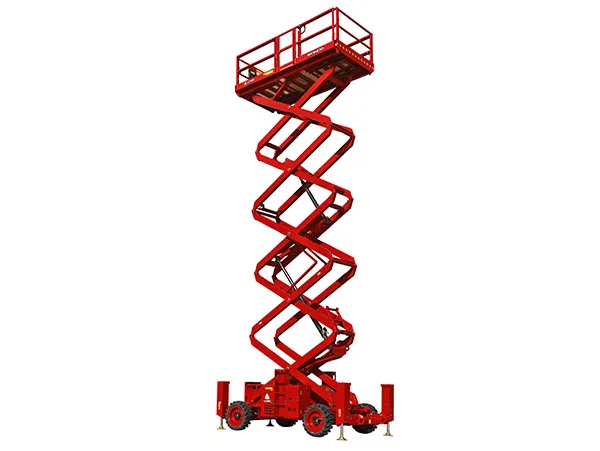

53ft LGMG SR1623D(SR5390D)

Available Now

Platform Height

15.9

Working Height

17.9

58.9

Lift Capacity

680

Fuel Type

Diesel

Models	SR1623D	SR5390D
Measurements
Work Height Max	17.9m	58'9''
Platform Height-Raised	15.9m	52'2''
Platform Height-Stowed	2.08m	6'10''
Platform Length	3.98/4.81m	13'1''/15'9''
Platform Width	1.83m	6'
Overall Length	4.9m	16'1''
Overall Width	2.3m	7'7''
Overall Height-Guardrails Up	3.18m	10'5''
Overall Height-Guardrails Down	2.5m	8'2''
Extension Deck (Front/Rear)	1.45/1.14m	4'9''/3'9''
Wheelbase	2.85m	9'4''
Ground Clearance-Center	0.23m	9''
Productivity
Max. Platform Occupants	4 (in) / 4 (out)
Platform Capacity	680kg	1500 lbs
Platform Capacity-Extension Deck	230kg	510 lbs
Drive Height	8.5m	27'11''
Gradeability-Stowed	40%
Turning Radius-Outside	5.33m	17'6''
Raise/Lower Speed	55/55s
Brakes	Four-wheel Brake
Drive Mode	4×4
Tires Type	Solid
Tires Size	835×290mm	33''×11''
Ground Pressure, Tyres	888.31 kPa	128.8 psi
Power
Power Source	Deutz D2.9 L4 36.4kw/48.8hp
Fuel Tank Capacity	110L	30gal
Hydraulic System
Hydraulic Oil Capacity	140L	37gal
Weight
Machine Weight (7.4m platform CE)	8200kg	18080 lbs
Machine Weight (6.58m platform, ANSI)	8100kg	17860 lbs
