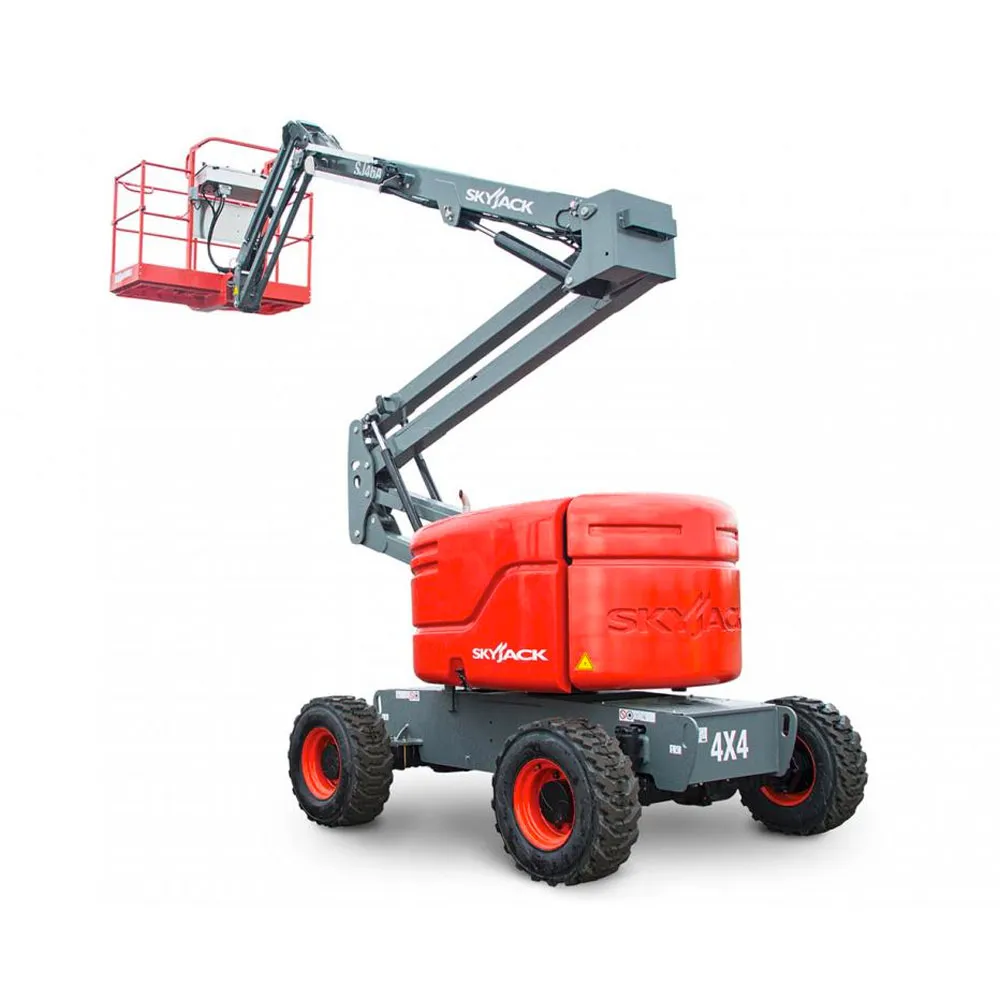

46ft Skyjack SJ46 AJ Articulating Boom Lift

Available Now

Platform Height

14.1

m

/

46

ft

Working Height

15.93

m

/

52

ft

Lift Capacity

227

kg

Fuel Type

Diesel

Download Spec Sheet

Technical Specification
Work Height	16.10 m
Platform Height	14.10 m
Up and Over Height	7.45 m
Platform Size	1.83 x 0.76 m
Stowed Width	2.29 m
Tailswing	Zero
Stowed Height	2.07 m
Transportation Height	2.16 m
Stowed Length	6.35 m
Transportation Length	5.97 m
Ground Clearance	0.39 m
Wheelbase	2.03 m
Rotation	355° NC
Platform Rotation	170°
Jib Length	1.40 m
Jib Range +/-	+70° / -75°
Weight	6,500 kg
Gradeability	45%
Turning Radius (Inside)	2.49 m
Turning Radius (Outside)	4.34 m
Axle Oscillation	12.70 cm
Drive Speed (Stowed)	4.0 km/h
Capacity	227 kg
Horizontal Reach	7.54 m
Maximum # of Persons	2
Tire Type	Solid
Tire Size	10 x 31
Diesel Engine	18.5 kw (24.8 HP)
Fuel Tank	64 L
Hydraulic Reservoir	91 L
